Overview of Micro Switch Applications

The Micro Switch is a highly reliable component used in various devices. Its compact size and responsiveness make it ideal for precise control. Engineers often select Micro Switches for their durability and consistent performance. These tiny switches quickly respond to physical changes, making them essential in safety and automation systems. The Micro Switch can handle a range of electrical loads effectively, which enhances its versatility.

Structure and Functionality

At its core, the device comprises a quick-action mechanism that activates the switch contacts immediately after the actuator moves. This setup ensures minimal delay and optimal responsiveness. The Micro Switch features a small lever or button, which when pressed, triggers an electric contact inside. This mechanism supports a wide spectrum of uses thanks to its reliability.

Common Micro Switch Types

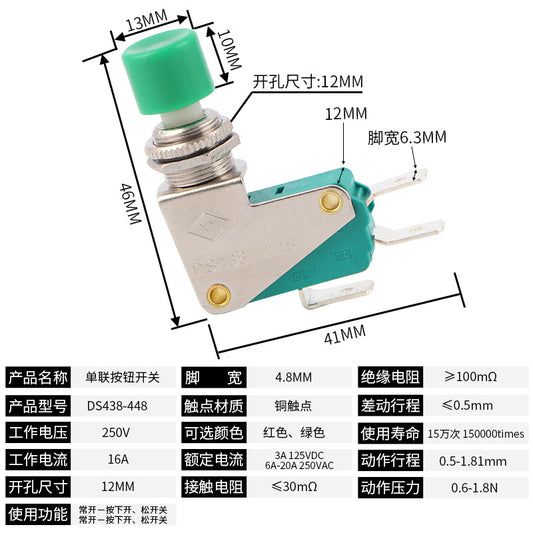

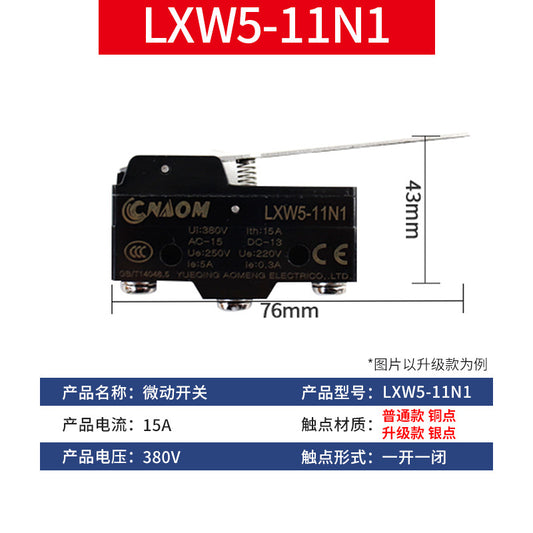

There are various designs available, each suited for specific tasks. Some utilize a roller lever, while others use a simple button or hinge. Selection depends on the mechanical setup and the application’s needs. Due to these choices, it is crucial to understand the environment where the switch will operate.

Typical Applications

Micro Switches are common in household equipment, industrial machinery, and automotive systems. For instance, they regulate safety interlocks in microwave ovens and detect door positions in washing machines. In the automotive field, they contribute to gear position sensing and seat belt detection. Their rugged construction also makes them fit for harsh environments.

Installation Tips

Correct installation affects the switch’s reliability. Ensure that the actuator moves freely without excessive force. The mounting should be stable to prevent unintended toggling. Wiring must comply with electrical standards to avoid faults and prolong lifespan. Proper orientation of the Micro Switch ensures the best performance and longevity.

Maintenance and Longevity

Maintenance involves periodic checks for cleanliness and mechanical wear. Dust or debris can impair the switch function, causing failures in critical systems. Routine testing under working conditions helps identify potential issues early. Replacing worn switches promptly maintains system integrity.

Environmental Considerations

Operating conditions like humidity, temperature, and vibration can influence switch functionality. Choosing a Micro Switch with appropriate ratings is crucial for harsh environments. Options with sealed enclosures combat dust and moisture ingress. These features contribute to extended service life and dependable operation.

Micro Switch Advantages

These switches stand out for their long mechanical and electrical endurance. They require minimal operating force, reducing user fatigue in manual applications. Moreover, their quick snap-action prevents contact bounce, ensuring clean electrical signals. This results in reliable machine controls and measurable performance improvements.

Industry Use Cases

Manufacturing relies on these switches to control assembly lines. Automatic shut-off and alert systems often incorporate them to ensure safety. The healthcare sector uses Micro Switches in diagnostic machinery to maintain precision. Consumer electronics benefit greatly from their tiny footprints and dependable switching.

To summarize, the Micro Switch offers an excellent balance of performance and size. Its use across diverse industries underlines its importance in modern engineering. Proper selection, installation, and maintenance maximize benefits from this essential component. Embracing this switch type can improve both product quality and operator safety.
