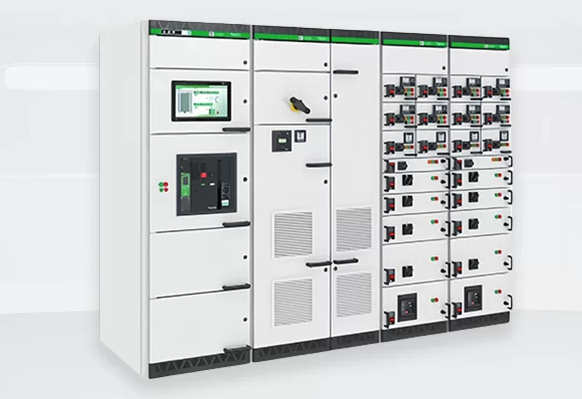

BlokSeT Low Voltage Switchgear
BlokSeT Low Voltage Switchgear
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
| Item | Data | |
| Rated Insulation Voltage (Ui) | 1000V | |
| Rated Operating Voltage (Ue) | 400/690*V AC | |
| Rated Frequency (F) | 50/60 Hz | |
| Rated Pulse Voltage (Uimp) | 12kV | |
| Rated Auxiliary Circuit Voltage | 230 V AC max. | |
| Overpressure Grade | IV | |
| Pollution Level | 3 | |
| Rated Value of Horizontal Busbar | Up to 7000A | |
| Rated Value of Vertical Busbar | Up to 3200A | |
| Horizontal Busbar | Rated Short-Time Withstand Current (lcw/1s) | 30/50/65/80/100 kA |
| Rated Peak Withstand Current (lpk) | 63/105/143/176/220 kA | |
| Vertical Busbar | Rated Short-Time Withstand Current (lcw/1s) | 30/50/65/70/85 kA |
| Rated Peak Withstand Current (lpk) | 63/105/143/154/187 kA | |
| Internal Combustion Arc Personal Protection IEC 61641 V3 | 85kA 0.5s (lpc arc), 65kA 0.3s (lp arc) | |
| Seismic Capacity Up to GB/T2424.25 | Earthquake Intensity of 9 Degrees | |
| Grounding System | TT-IT-TNS-TNC | |
| Maximum Incoming and Outgoing Line Switch | 6300 A | |
