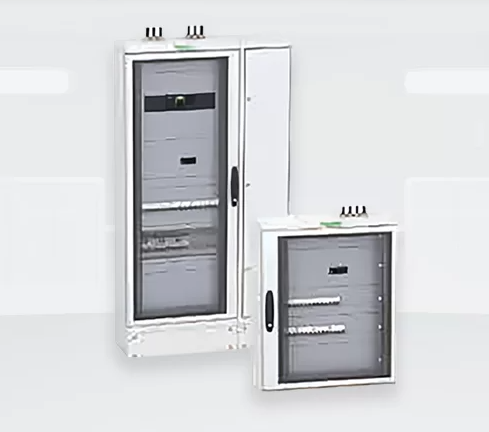

Prisma E Distribution Box

Prisma E Distribution Box

$1.00 USD
$1.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Electrical Characteristics
Rated Current (A) 630 (1)
Rated Insulation Voltage Ui (V AC) 1000
Rated Operating Voltage (V AC) 400V/440V
Rated Impulse Withstand Voltage (kV) 8
Frequency (Hz) 50/60
Rated Short-Time Withstand Current (kA/1s) 20
Rated Peak Withstand Current (kA) 42
Mechanical Characteristic
Total Height (mm) 500 700 900 1100 1300 1650 1850
Vertical Modulus 8 12 16 20 24 28 32
1 module =50 mm
Depth (mm) 235
Depth of Concealed Cabinet Installation (mm) 220
Cabinet Width (mm) 600
Separation Form 1
Door Type Solid Door, Double Door, Glass Door
IP Level(3) 30/31/40/41/54
IK Level(4) 07/10
Applicable Standard
Type Test GB/T 7251.1 and GB/T 7251.12
IP Level IEC60529
Empty Cabinet Standard GB/T 20641
Ambient Condition
Operation Indoor
Maximum Altitude (m) 2000
Average Ambient Temperature (° C) 35
Pollution Level 3
Other
Cabinet Material Cold Rolled Steel Plate
Coating Electrostatic Spraying Epoxy Resin Powder
Colour RAL7035 (industrial ash)
The Insulation Material Inside The Cabinet High Temperature Resistance and Flame Retardancy
Notes
For other size specifications, please consult relevant personnel from Senda.
(1) The concealed cabinet only covers 160A current;
(2) The concealed cabinet and door opening scheme only includes 8M~24M;
(3) The concealed cabinet covers IP30 and IP40; The open door covers IP30, IP31, IP40, IP41;
(4) IK07 without a door and IK10 with a door.
