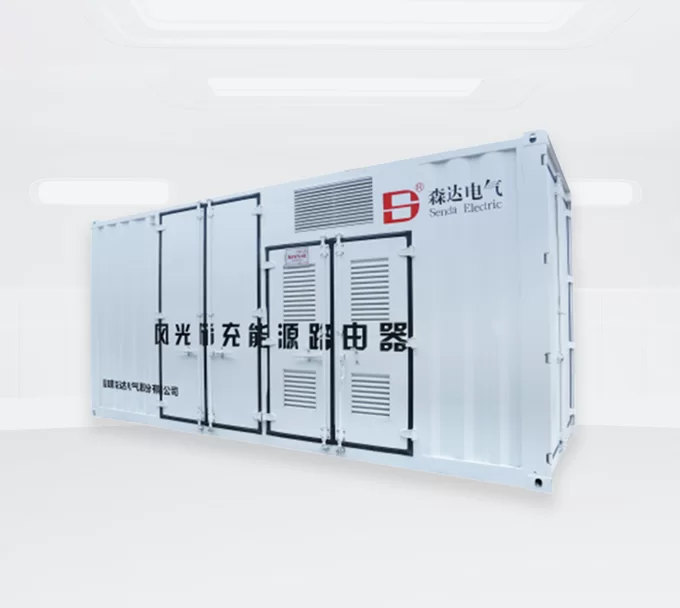

Wind and Solar Energy Storage and Charging Router Product Series
Wind and Solar Energy Storage and Charging Router Product Series
Regular price
$1.00 USD
Regular price
Sale price
$1.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
| Product Parameters | |||
| Product Model | SEER-Y-630kW SEER-F-630kW |
SEER-Y-1200kW SEER-F-1200kW |
|
| Basic Parameters | Rated Power | 630kW | 1200kW |
| Number of Vehicle Charging Gun | 3~15 | 6~30 | |
| Output Voltage | DC200-1500V | ||
| Maximum Output Current | 250A(Forced Air Cooling) / 600A(Liquid Cooling) | ||
| Vehicle Charging Gun Length | 5/6/10m | ||
| Input Voltage | AC10kV±7% | ||
| Frequency Range | 50 Hz | ||
| Phase Line | 3F+PE | ||
| Size W*D*H | 6058(W)×2538(D)×2896(H) | ||
| Weight | 15t | ||
| Accuracy | 0.5 level | ||
| Functional Design | Man-machine Interface | 7-inch color touch screen | |
| Charging Operation | Swipe card and scan code | ||
| Communication Methods | RS-485; Eehernet; WiFi | ||
| Power Allocation | Equal Distribution/Dual Vehicle Charging Gun | ||
| BMS Auxiliary Source | DC12V/24V | ||
| Installation Method | Mobile hoisting | ||
| Current Limiting Protection | ≥110% | ||
| Voltage Stabilization Accuracy | ≤±1% | ||
| Stabilized Current Precision | ≤±0.5% | ||
| Ripple Factor | ≤±0.5% | ||
| Efficiency | ≥96% | ||
| Power Factor | ≥0.98 | ||
| THDI | ≤3%@ the full load | ||
| Whole Station Loss | ≤5%@ the full load | ||
| Environmental Indicators | Altitude | ≤3000m | |
| Ambient Temperature | -25~45℃ | ||
| Working Humidity | 5%~95%（No condensation） | ||
| Heat Dissipation Control | Forced Air Cooling | ||
| Protection Grade | IP54 | ||
| Noise Control | ≤55dB | ||
| Function Selection | 1. Photovoltaic DC bus connection
2. DC bus connection of energy storage batteries 3. AC power supply 380V AV/50Hz optional output |
||
| Notes | 1. In fast charging applications, energy storage and charging router support dual gun charging
2. Liquid cooled single gun with a maximum output of 600A, dual gun charging with 250A output each |
||
